Фаза контраст һәм Флуоресценция Микроскопияһы
Eyepiece: WF10X/22mm
Objective: Plan 4X, phase contrast plan 10X/20X/40X
- Fast Delivery
- Osiguranje kvaliteta
- Služba za korisnike 24/7
Uvod u proizvod

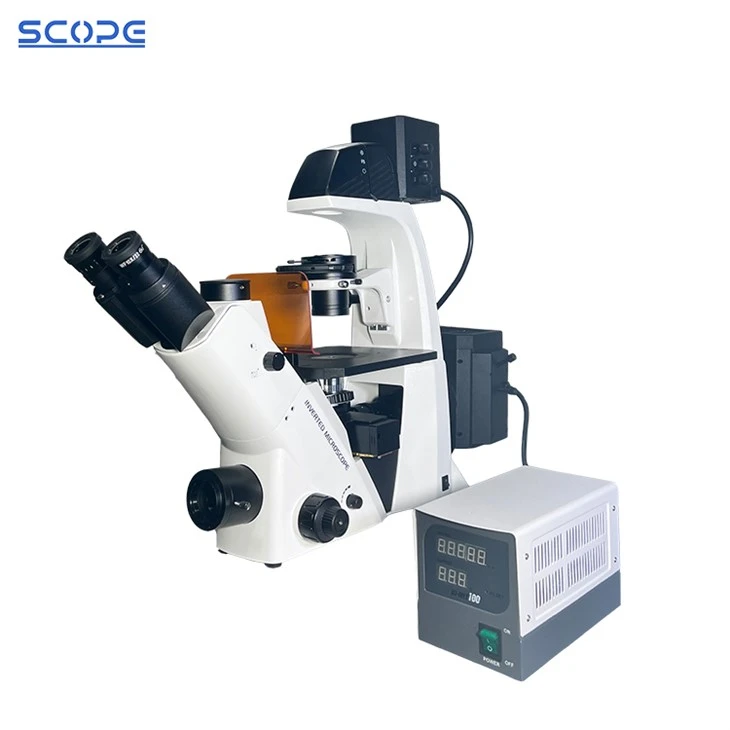

BDS500-FL is an inverted fluorescence microscope designed for professional laboratories and universities specializing in live cell research and a range of gene research. It provides all necessary functions for fluorescence, bright field, and phase contrast microscopes with an intuitive and economical design.
◢ 45 degree tilt observation head and Siedentopf pupil adjustment to provide flexibility and comfort.
◢ 96 holes mechanical XY moving ruler can fix and precise placement.
◢ 100W mercury fluorescence microscope lamp provides a powerful broad-spectrum light source for excitation.
◢ Magnifications 40X-400X, Phase contrast 10X/20X/40X plan objectives and 4X plan objective
| 40X-400X | |
| High eyepint, focusable eyepiece WF10X, field view diameter 22mm | |
| Infinity optic Plan achromatic L Plan FL4X/0.11 for brightfield& fluorescence observation | |
|
Infinited correction phase contrast plan achromatic L Plan FL PHP 10X/0.25, 20X/0.45, 40X/0.65 for brightfield& phase contrast& fluoresecent observation 4X/10X/20X/40X phase Contrast slides built-in Phae contrast condenser NA 0.4 WD45mm, up-down adjusting |
|
|
45 degree inclined trinocular head with 48-76mm adjusting interpupilasry distance Light distribution 100:0, 100% for eyepiece or 100% for camera port( Special for fluorescence observation) |
|
| Adaptor for CANNON or NIKON SLR digital camera, adjusting handel at the left sides of microscope,100% for eyepiece or 100% for SLR camera | |
| Qunituple nosepiece for installing 5 pcs eyepiece | |
|
X*Y size 210X241mm, round slide size diameter 110mm. XY moving 128x80mm attached mechanical stage for 96 holes plate 54mm culture dish holder |
|
| 12V 50W halogen lamp, 100V-240V, with blue/ green filter | |
|
100W mercury lamp 100V-240V Chinese Blue fluorescence filter EX420-480nm, DM505, EM520LP Chinese Green fluorescence filter EX525-555nm, DM565, EM590LP |
